Paint Thickness Gauge

Description

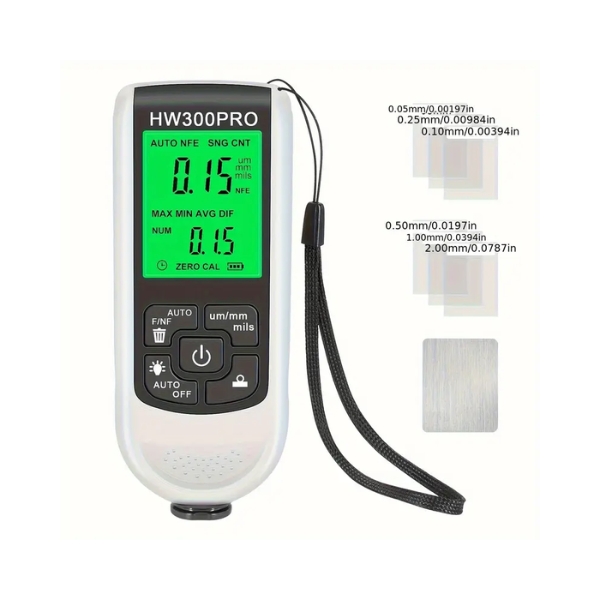

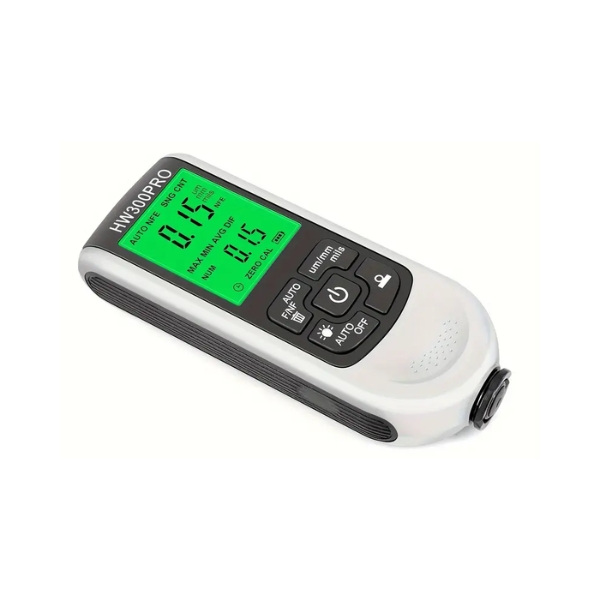

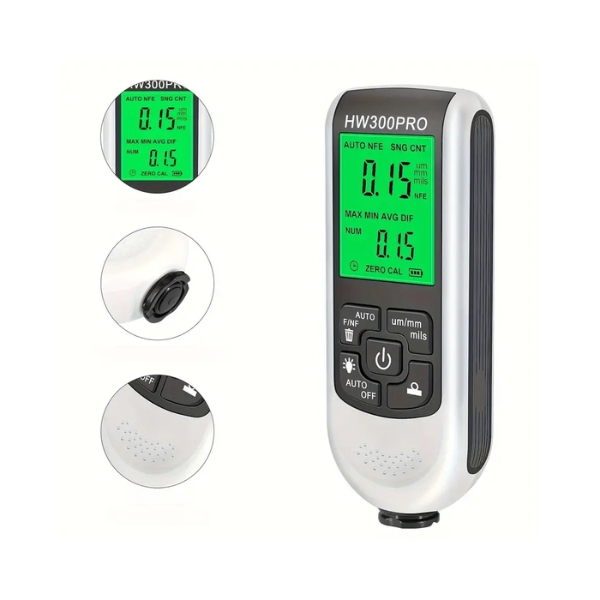

Coating Thickness Gauge – HW300 PRO

A Paint/Coating Thickness Gauge is a device used to measure the thickness of paint/coatings applied to various surfaces. These gauges are essential for quality control, ensuring coatings meet specified standards, optimizing material usage, and enhancing product performance in various industries.

Checking paint thickness on vehicles to detect previous repairs or assess overall paint quality.

Product Specifications:

• Measurement ranges: 0~1.80mm/0~71.0mil
• Measures in mm, mil, um
• Resolution: 0.01mm/1mm
• Measurement error: 0.03mm
• Min. diameter of substrate: 50mm
• Min. thickness of substrate: 0.5mm
• Operating temperature range:0~40°C
• Operating humidity range: 10~95%RH

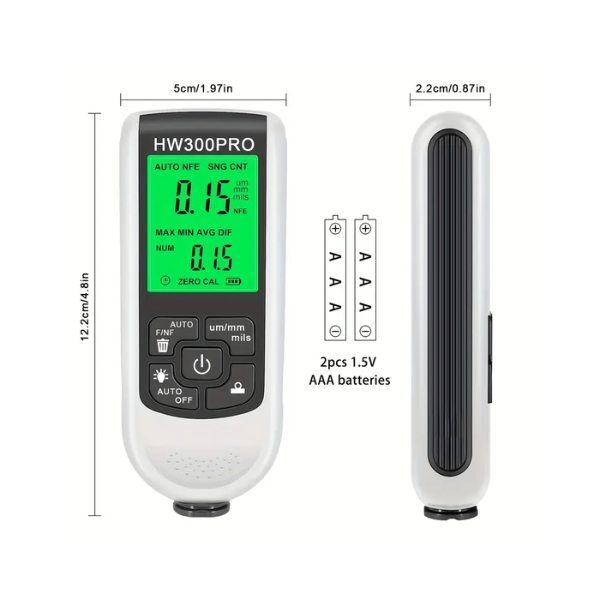

• Overall dimensions: 126*50*25MM
• Power supply: 2*1.5V AAA batteries

Features:

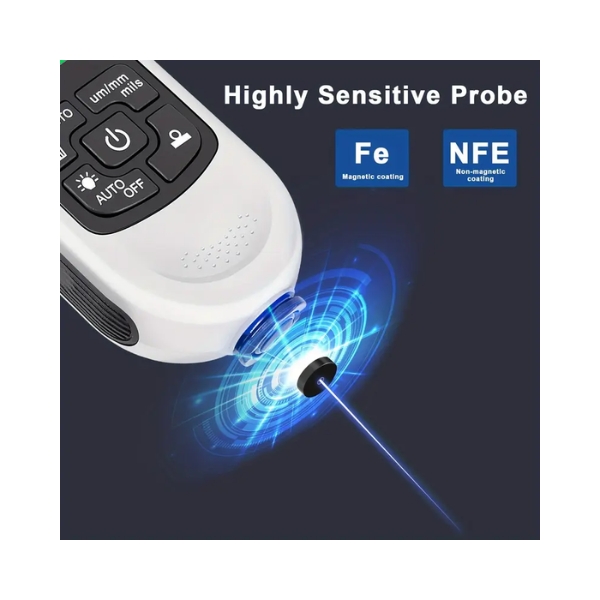

• Thickness measurement of surface coatings on metal substrates
• Single measurement, continuous measurement and differential measurement available
• Zero-point calibration, multi-point calibration and basic calibration available
• Metric and imperial units of measurement optional
• Automatic shutdown

What’s in the box: 1 x Paint Thickness Gauge
